Prevent roof leakage, protect your ceiling, and ensure long-lasting waterproofing with Waterseal’s Professional-grade Nonshrink Grouting Solution.

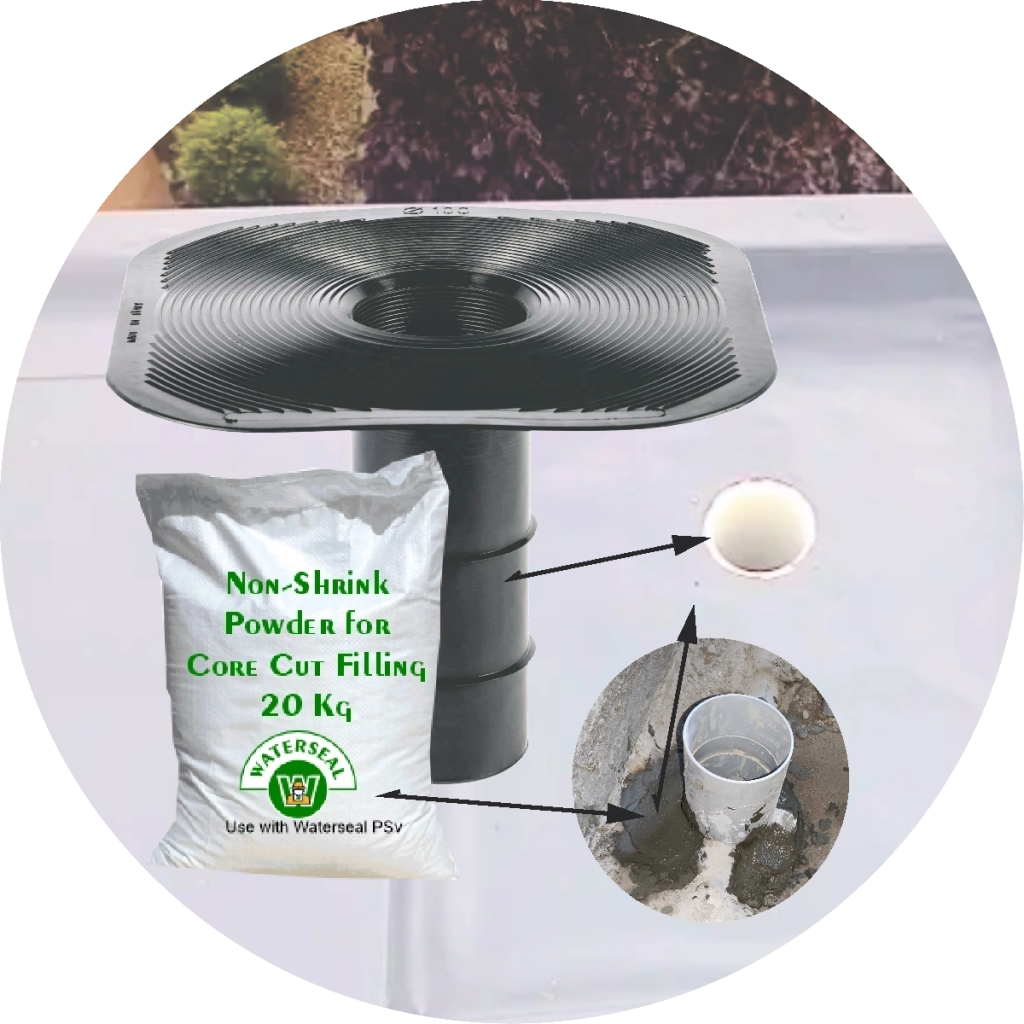

Terrace Outlet Pipe Core Filling with Non-Shrink Grouting Solution

Terrace Outlet Pipe Core Filling | Non-Shrink Grouting Solution

In modern building construction, terrace outlet pipe core filling plays a crucial role in ensuring long-term waterproofing and structural durability. If the outlet pipe on your terrace is not properly sealed with Non-Shrink Grouting Solution. the core space around it is left unfilled, it can become a major cause of water leakage, damp ceilings, and surface cracks.

Terrace Outlet Pipe Core Filling | Non-Shrink Grouting Solution
Non Shrink Grouting Solution

🧱 What Is Outlet Pipe Core Filling?

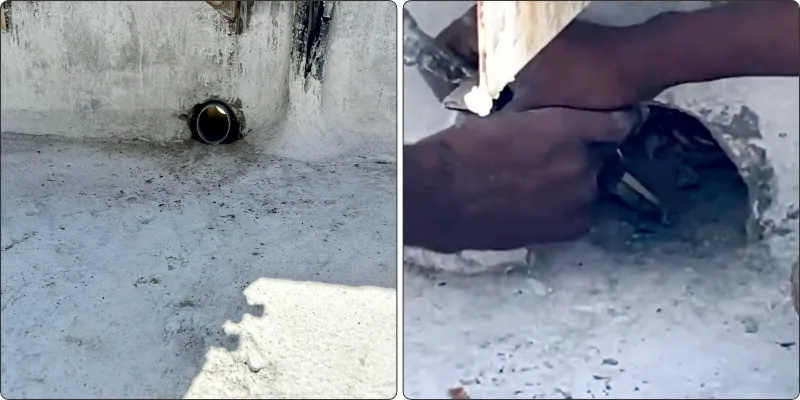

During terrace Drain Pipe Grouting work, a core hole (usually 4 inches in diameter) is drilled through the roof slab to install a PVC outlet pipe. This pipe carries rainwater from the terrace directly to the drainage line.

However, the small gap between the concrete core and the PVC pipe must be carefully filled. If this space is simply covered with cement mortar, it tends to shrink, crack, or lose adhesion over time — allowing water to seep through the joint.

That’s where a Non-Shrink Grouting Solution becomes essential.

Use Non-Shrink Grouting Powder for Core Filling Waterproofing

Non-Shrink Grouting Powder is a specially formulated, ready-to-use dry mix that expands during curing instead of shrinking. This expansion ensures a perfect, void-free seal between the concrete and the outlet pipe surface — completely eliminating leakage problems.

✅ Key Advantages

  • Zero Shrinkage Formula: Prevents cracks, gaps, and separation from PVC or concrete.

  • Superior Adhesion: Bonds strongly with cement, steel, and masonry.

  • High Compressive Strength: Designed to withstand heavy static and dynamic loads.

  • Self-Leveling Flow: Easily fills narrow gaps and hard-to-reach areas.

  • Quick Setting: 20–40 minutes of working time ensures faster completion.

Old Terrace Waterproofing Tips
New Terrace Waterproofing

🏗️ Step-by-Step Process for Terrace Outlet Pipe Core Filling

  1. Clean the Core Area:
    Remove dust, debris, and loose material around the drilled core and pipe

  2. Prepare the Core Base: First, seal the underside of the core opening with plaster of Paris to prevent leakage of the grout. Then, pour the non-shrink grouting mixture carefully around the core area and allow it to cure completely.

  3. Prepare the Mix:
    Mix 1 kg Non-Shrink Grouting Powder with 1 litre of clean water (for a flowable mix, use up to 1.25 litres).

  4. Apply the Grout:
    Pour the mix slowly into the core space around the pipe. Ensure it fills all voids and gaps evenly.

  5. Allow It to Set:
    Let the grout cure naturally. Avoid disturbing it for the first 24 hours to achieve a strong, waterproof bond.

  6. Finish With Plaster:
    After curing, plaster the surrounding surface for a neat finish and added protection.

🧩 Professional Applications of Non-Shrink Grouting

  • Terrace outlet pipe and drainage sealing

  • Core hole filling in ceilings and slabs

  • Base plate installation for heavy machinery

  • Foundation and column repair

  • Structural reinforcement and precision grouting

🌟 Why Choose Waterseal Non-Shrink Grouting Solution?

Waterseal Non-Shrink Grouting Powder is trusted by professionals for its consistent performance, long-term durability, and zero-leakage results. Its expanding technology and superior bonding strength make it the perfect solution for terrace outlet pipe core filling and other waterproofing applications.

✅ Conclusion

When it comes to preventing terrace leakage and ensuring a durable waterproofing system, ordinary cement is not enough. Always choose a Non-Shrink Grouting Solution for your terrace outlet pipe core filling to achieve a permanent, leak-proof seal and long-lasting protection.

Terrace Outlet Pipe Core Filling FAQs – Non-Shrink Grouting Solution

What is Terrace Outlet Pipe Core Filling?

Terrace Outlet Pipe Core Filling is the process of sealing the space around a PVC outlet pipe drilled into a terrace or roof slab. Proper core filling prevents water leakage, protects the ceiling, and ensures a durable waterproof seal.

Non-Shrink Grouting Powder expands slightly during curing, eliminating cracks, voids, or shrinkage that can occur with ordinary cement. It bonds strongly with concrete and PVC, ensuring a leak-proof and long-lasting seal for terrace outlet pipes.

Step 1: Clean the core area and remove dust or debris.
Step 2: Seal the underside of the core with plaster of Paris.
Step 3: Mix 1 kg of grouting powder with 1–1.25 litres of water for flowable consistency.
Step 4: Pour the mixture carefully into the core area around the pipe.
Step 5: Allow it to cure completely before plastering or finishing the surface.

A standard 20 Kg pack of Non-Shrink Grouting Powder is sufficient to fill 8 to 10 outlet pipe cores in a terrace.

Current Price: ₹1,800 per 20 Kg pack, inclusive of all taxes.

Yes! In addition to terrace outlet pipe core filling, it is suitable for:

  • Heavy machinery base plate installation

  • Structural foundation repair

  • High-pressure pipe sealing

  • Precision industrial grouting
    Its non-shrink and high-strength properties make it ideal for any area requiring durable, crack-free grouting.
